Carnegie Mellon Racing

Tom Scherlis Formula North (21 of 55).jpg

2014-present

Carnegie Mellon Racing

Head of Design

Every year, Carnegie Mellon Racing (CMR) designs and builds a new electric race car to compete in Formula SAE, an intercollegiate racing series. As the Head of Design, I am responsible for leading the design team in all of its endeavors. The Design Team designs each car's bodywork and paint, and creates CMR's brand.

Each car is the product of a dedicated team of students and support from sponsors.

Our most recent car, 18e, placed first overall in the electric division at Formula North and at Formula SAE Lincoln, establishing CMR as the top electric racing team of North America in 2018.




2015



15e is CMR's second electric race car.

15e won first place in the design finals at the 2015 Formula Hybrid Competition, placed second overall, and won the IEEE Excellence in Electric Vehicle Engineering Award.

2016



16e represents a new, modular approach to FSAE body design, intended to ease manufacturing and installation.

2017



With a body designed by Vivian Qiu, 17e retains the modular approach of its predecessor.

2018



Reusing the previous year's molds, 18e is all about refinement. The design team focused on branding and livery, and updated the body with a new radiator shroud, while CMR's engineers improved the aero package.

18e is the top electric FSAE car in North America, placing first overall at Formula SAE Lincoln and Formula North.

2019



19e's body design process is currently underway.


Body Design Process

Working within the tight constraints of the FSAE regulations and the objectives set forth by the team's engineers, our goal is to make a strong visual statement that supports our brand.





The design process always begins with hand sketching, based on templates of the chassis design.

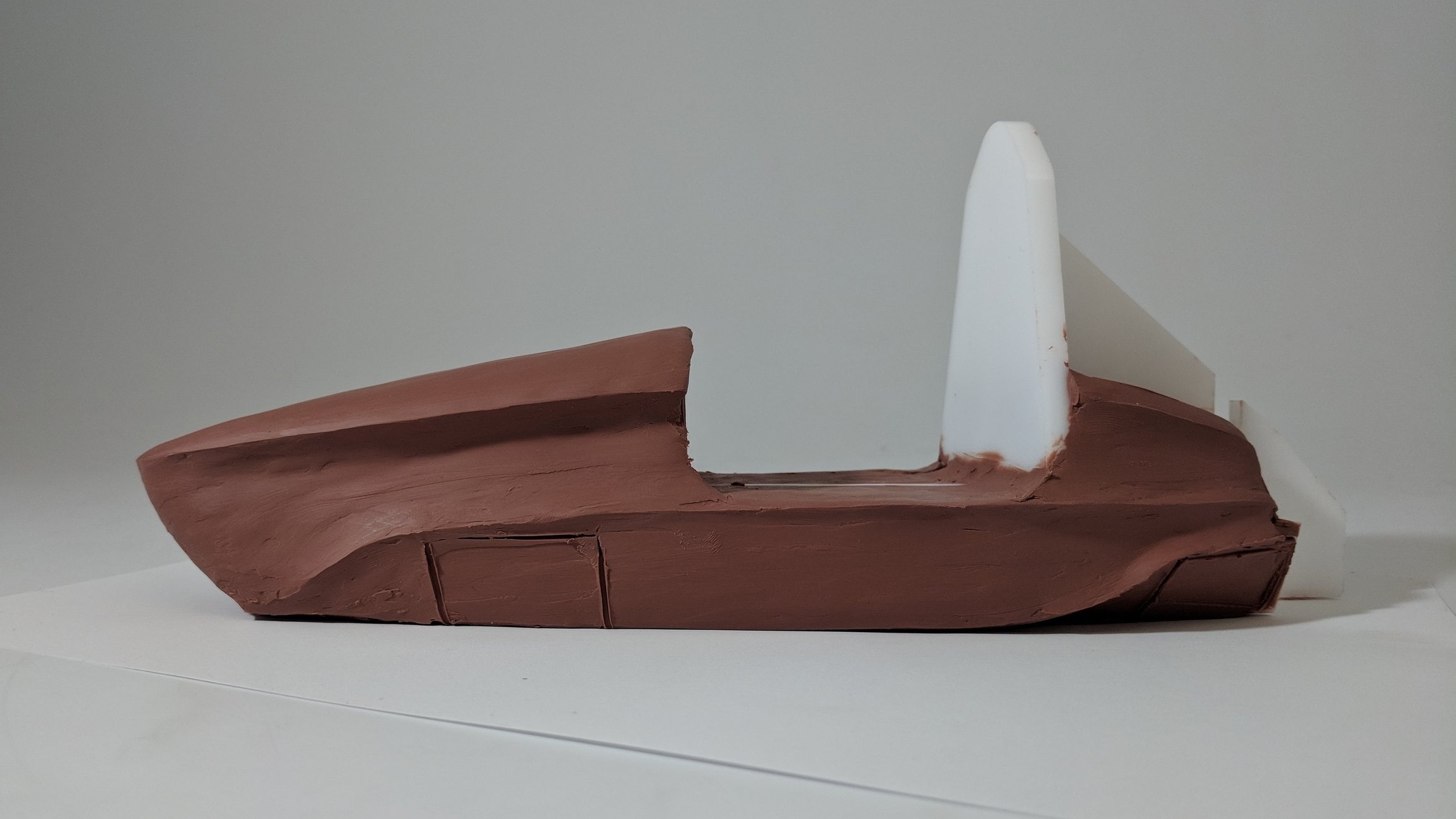

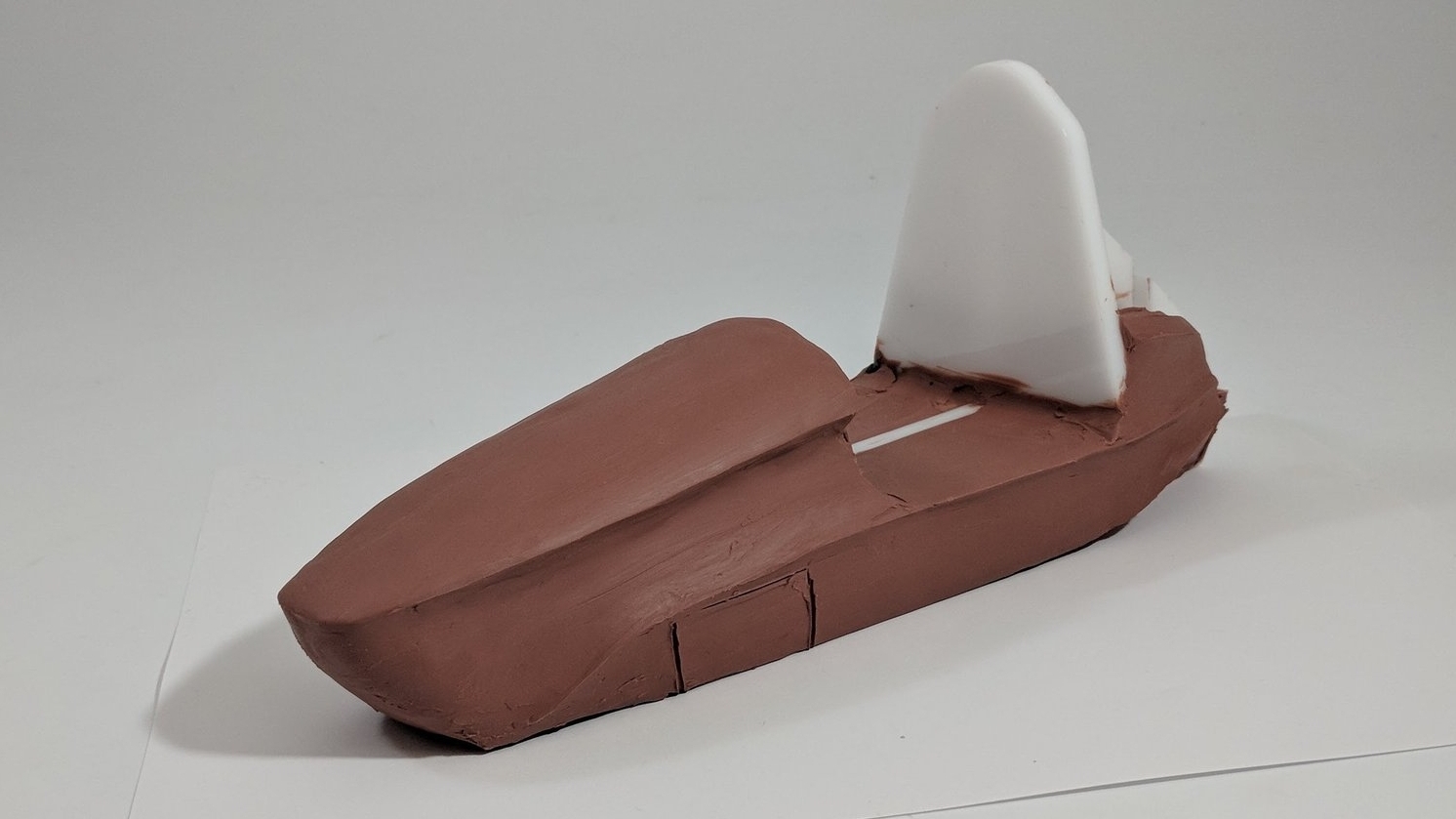

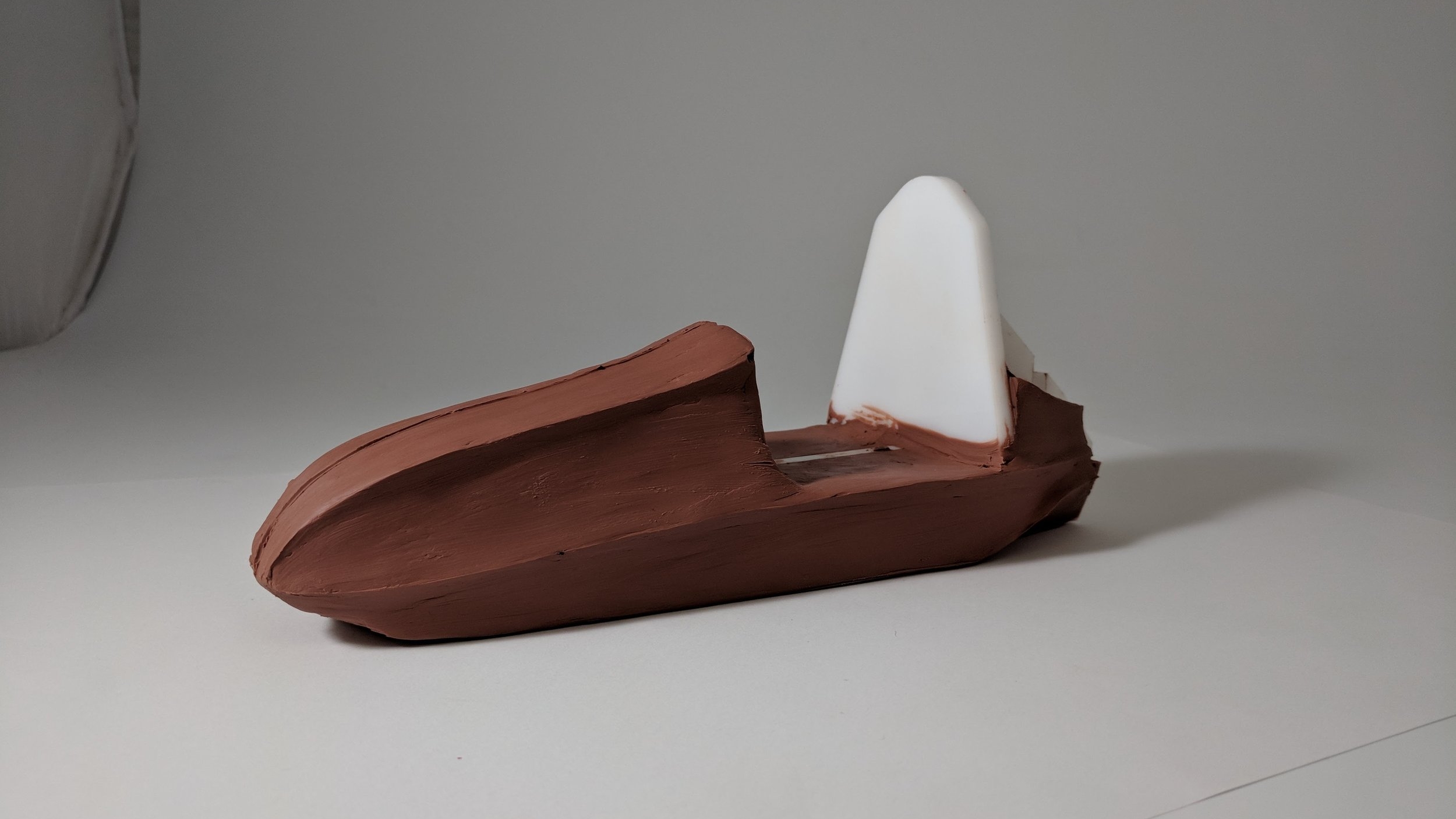

We use clay models to further flesh out our ideas, and to aid the design team in critical discussion. The clay models are built on an acrylic frame that represents the dimensions of the chassis at 1/10th scale.

16e Full Render.JPG

To finalize the vehicle's exterior design, we create a surface model in SolidWorks. By building the body panels in the team's collaborative assembly, we can ensure proper fitment with the chassis and clearance of components.



Fabrication

The fabrication process began with the use of the CAD model to cut full-sized foam molds with a CNC router. The molds were cut in layers, then glued together and hand sanded before being painted and finished with gel coat and mold release wax. By laying fiberglass over the foam molds, we created the final female molds.

The body panels themselves were created by laying carbon fiber into the fiberglass molds, which were then vacuum bagged and cured in an oven. After releasing the panels from the fiberglass molds, we sent the body to PPG to be finished and painted, which is where the body gained its distinctive hand-painted shark mouth. The final step was to apply the sponsor stickers and trim the panels for mounting.
